:: Plasto Series Heavy Duty Gear Pumps ::
| Model | PP 050 |
PP 100 |
PP 150 |
PP 200 |
PP 250 |
PP 300 |
PP 400 |
PP 500 |
PP 600 |
| Size | 1/2" | 1" | 11/2" | 2" | 21/2" | 3" | 4" | 5" | 6" |
| Capacity | 0.5/1/1.5 | 2/2.5/3 | 5/6/7.5 | 9/12 | 15/20 | 25/30 | 40/50 | 60/75 | 100/125 |
- Double helical gear pump with Flanged connections.
- Shaft supported on needle roller bearings.
- Choice of self or independent lubrication of bearings.
- Recommended for heavy duty application of handling petroleum products add viscous liquids.
- Wide capacity range.
- Provision for fittment of mech. seal.
- MOC - CI/CS/SS.
- Facility for steam jackettin.g
- Sealing arrangement - oil seal / glandpacking / mech. seal.
- Capacity in m3 /hr at 1440 RPM.
- Operating Pressure upto 25 kg/cm2.
- Max. Temp upto 250° c.
- Flanged connection in BS / ANSI / AS.
For detailed technical literature / Catalogue please, write ,mail or fax us. Fill in the Enquiry form to enable us to suggest a suitable pump to your application.

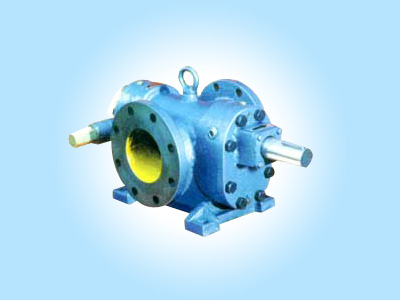

:: Rotary Gear Pump ::
- Size : 15mm to 65mm.
- Pressure : 5 to 10 kg/cm2.
- Capacity : 20 to 350 lpm.
- Only two moving parts.
- Quiet in operation.
- Removable bearings.
- Built-in relief valve (optional ).
