:: Heavy Duty Polypropylene Horizontal Centrifugal Pump ::

Centrifugal Chemical Process Pump - Series : PPC

Plasto Process pump is a horizontal single end suction standardized back pull out process pump. PPC series process pupms are supplied with mechanical seal/gland packing arrangement covering 85% of the chemical industries requirement. The pumps are manufactured from polypropylene copolymer-a chemically inert thermoplastic by the use of an exclusive moulding process. This pumps give you unusual protection against highly corrosive chemicals. The solid molded casing and impeller ensure a smooth running pump for long life and a minimum of wear. all pumps , shafts are fitted with sleeves of different materials compatible with the liquid handled.

• Double mechanical seals avaiable for clogging material application.
• Size available to handle flow from 1 m3 to 100 m3 per hour.
• Allows high working temperature upto 70 oc.
• Designed to strictly restrict any chemical absorption into the interior section, hence allows change over ofchemicals without contamination, just by flushing the pump properly.
• Can be used for continuous or intermittent service.
• Less costly, yet can handle a wider range of chemicals than any special alloy pumps.
• All metal parts are protected with chemical grade epoxy coating.
• Choice of threaded or flanged fittings available.
• Non-metallic sealing elements ensures freedom from metallic contamination.
• Gland System : High Allumina Ceramic Sleeve provided.
• Mechanical Sleeve : High Allumina Ceramic v/s GFT

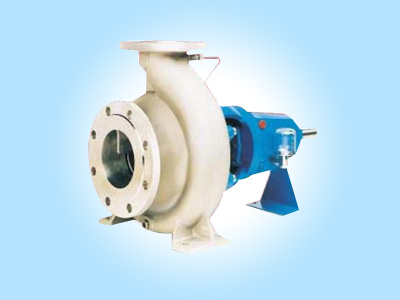

Centrifugal Chemical Process Pump - Series : PCF

Plasto Process pump is a horizontal single end suction standardized back pull out Process pump in accordance with ISO2858/DIN24256. The PCF series process pumps are single piece, self venting radially split volute casing with vortex discharge, close redial impellers have back vanes for hydraulic balancing & reducing stuffing box pressure. Dry shaft construction preventing liquid contact with shaft.
